UASAL Configuration Management Summary

UASAL software is being architected such that programs and/or methods are provided a distinct set of parameters, known as a configuration, and the program (e.g. a simulation tool) is to return an object (or objects) with the data interest. The format of the object itself is up to the user, but the intention is that the computations are done inside the program, and the presentation (e.g. plots) are performed external to the toolset as part of an analysis document (e.g. a script or notebook).

Much of the reasoning for employing configuration management and developing tooling to support it is to enable rapid analyses and trade studies that have repeatable results. As programs develop, there are two separate use-cases that often encapsulate the majority of user needs:

  1. An exploratory study where a small number of parameters are iterated over and the results are compared.

    • An example of this would be to look at the sensitivity of an instrument for different coating choices.

  2. An analysis that is used to derive a key value that must be continually re-evaluated and shown to be in compliance.

    • An example of this would be expected performance (e.g. sensitivity) of the observatory main instrument.

In case 1, the analysis is performed at a fixed point in time relative to a specific configuration. This often produces an artifact that is then used to make a decision in one direction or another. The analysis is recorded and can be redone at a future time if required, with the same of different starting values, but is generally not revisited regularly.

In case 2, the analysis needs to be re-done with every change to the system that impacts it. The value and/or result is generally monitored and evaluated over time. This could be a key performance metric (aka a technical performance measure or TPM) or a requirement that is derived and placed on another component. Evaluation of the expected wavefront error of an observatory would be an example of this. Each time a change to the observatory configuration occurs, the metric needs to be re-evaluated to ensure performance will be met.

Maintaining a structure where the tools are built to accept configurations, and analyses are written to call these tools allows both of these use-cases to be accomplished.

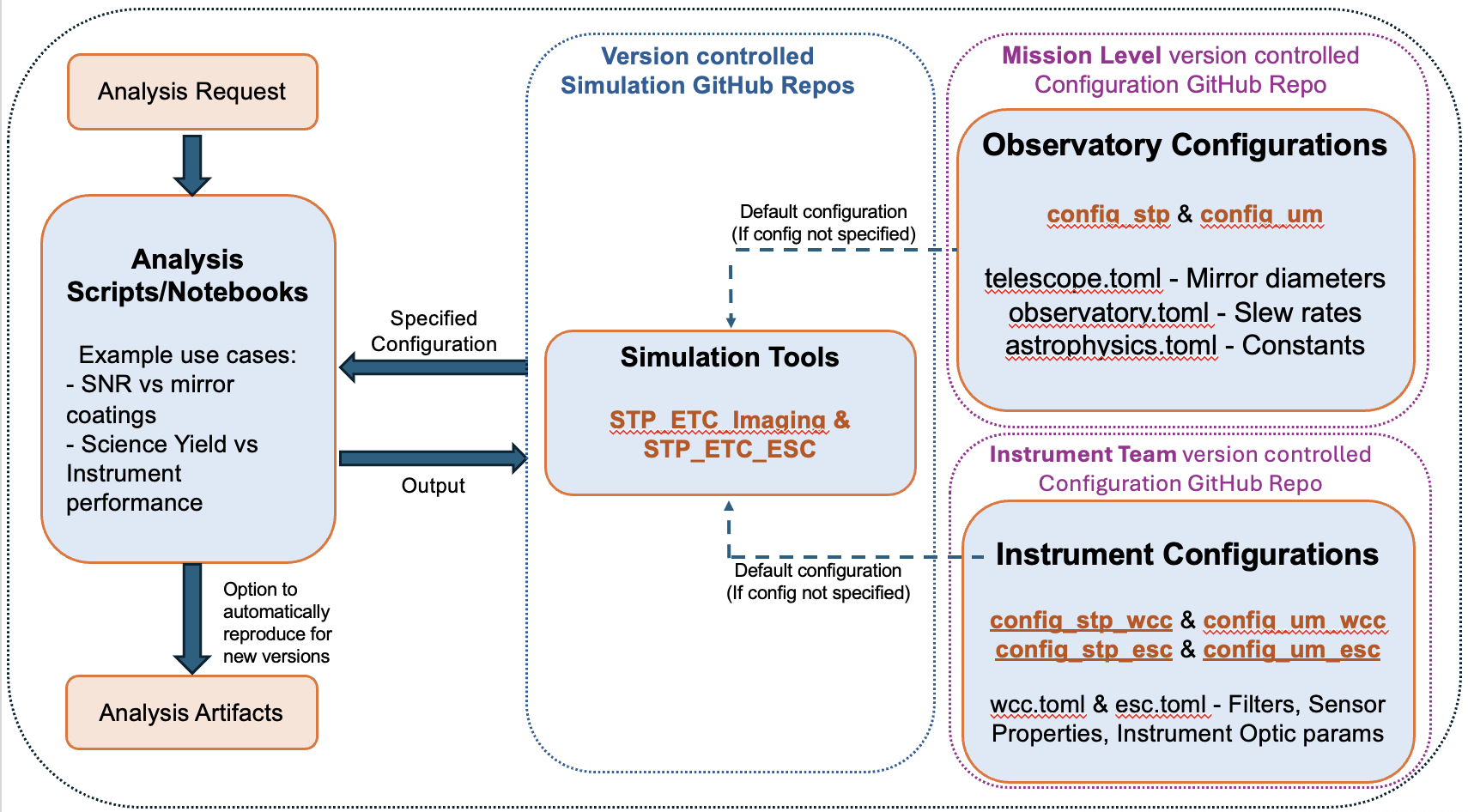

The following figure demonstrates how UASAL organizes and structures a subset of its tools and configuration repositories and how they are called from within an analysis.

Configuration mapping

Configuration mapping

UASAL structure for analyses, simulation tooling, and configuration repositories.

It is important to note that each simulation tool gathers it’s configuration from a multiple sources (and repositories). The parameters needed by each tool differ, but the SOURCES of the parameters which encompass the observatory and instrument are the same. This ensures that there is no duplication of parameters which could lead to errors in the analyses.

Each tool is provided, or automatically invokes a default configuration. Users can then iterate over over a single parameter in a configuration, or load an entirely different one. Utilizing this structure ensures repeatability and traceability of results while simultaneously allowing the exploration of configuration parameters and their effects on performance.

It is important to note that configuration files in all the repositories are machine-readable. This assists in managing the traceability of the values from requirements, budgets or other point of origin and enables the opportunity to make a specific set of analyses be able incorporated into a continuous integration framework.

Configuration Repositories

The configurations managed by UASAL are organized into discrete repositories that contain the configuration files, often written in TOML, as well as associated documentation and incorporated continuous integration tests. The TOML files support AstroPY units, which is discussed further in the FAQ section below.

The configuration repositories written as Python packages with very minimal dependencies to ensure they are easy to incorporate into your code and environment. Utilizing the package structure also assists with path management of supporting files. The one dependency is the config_utils package, which contains methods that help to ingest TOML files as well as containing the integration tests that run on all repos. Of course, non-Python software can still clone and/or download the repository and work directly with the TOML files, bypassing all the Python helper functions and implementation.

Repository Naming

Configuration repositories all follow the same naming convention, notably config_project_element. So a hypothetical example could be config_hubble_acs. The config_ prefix indicates it’s a configuration, the project indicates which observatory/telescope/project it is applied to (e.g. STP (Space Telescope Pathfinder) or UM (Ultramarine)), and the element indicates the instrument which it is applied to. It is not required that an instrument name be used as the element, but to date it has been the only element to be used.

Generally, there is a top level repository for the project (e.g. config_stp) which contains the items that are applicable to all parties and controlled at the system level. FIXME: expand this and make it clear what things are documented in the repo vs here.

Then there are configurations that are applied to each individual instrument (e.g. config_stp_wcc and config_stp_esc).

Navigating and finding config repos can be done from from UASAL GitHub page, and entering config_ in the repository search towards the bottom of the page as can be seen at this link.

Expanding configuration to other systems

The current set of configuration repositories are focused on the Space Telescope Pathfinder (STP) mission. It is anticipated that a new set will be created for the Ultramarine mission that will follow the same structure. However, it is important to note that the infrastructure is easily expandable to other projects and also local hardware setups. Examples include the phase retrieval testbench or SCoOB.

It is also possible to have configurations be specific to a location (e.g the ARB vs Steward), although this will require some additional implementation of features in the config_utils package.

Configuration Repository Structure

The directory structure is designed as follows:

  • Configuration parameters that are common to all tools in the repository belong in the common_params.toml file.

  • A separate directory (should be named the same as the repo) is needed for python packaging (config_project_template).

  • Config files must contain both values and units.

    • Units shall utilize the astropy format.

  • Values without a unit will be marked as unitless if being read via the config_loader in config_utils. See the documentation in that package for behavior details.

  • The origin of the values should be in a comment (for now).

  • At this time, no other filenames should start with an _. This functionality is reserved for future feature implementation(s).

  • Any added configuration file must contain the full set of available parameters and not just overrides for the defaults.

Configuration files may contain key valued pairs, but also utilize groupings and lists. Such as:

OD_optic1 = '50e-3m'
[sim_settings]  # settings for simulation tool
npix = 4096 # number of pixels per frame
beamrad = 0.4 # fractional beam radius
wavelengths = [500,600,700]

An example repository, which also provides a template for future configuration repos, is found at config_project_template.

Performing an Analysis with Existing Tools

An example notebook is provided in the config_project_template that provides a high-level demonstration on how an analysis can be written that utilizes a tool that is provided a configuration.

It also demonstrates Setting up environment variables, specifically in regards to the UASAL archive.

Configuration FAQ

  1. How do I find all the configuration repositories?

    • Search Github repos and GitLab repositories for anything named config_, as is done here.

  2. Does my tool require a separate configuration repository?

    • In cases where your tool is being used to conduct analyses or is related to the determination of budgets or requirements then it is advised to utilize a separate configuration repository that contains the defaults which should be called

  3. Why/When should config files be stored separately from the code?

    • Facilitates easy versioning (and impact assessment) between code changes and config changes

    • Single configs can/should be usable with different versions/branches/tags

    • Multiple people (or instances) can use them without permission from the code owners

    • Allows for rapid automated unit testing that verifies file is readable/parse-able so you don’t accidentally break your or someone else’s code

    • Allows for configurations that are specific to a site/machine/setup

  4. Where should I put the configuration for my tool?

    • If your tool is often used in combination with another tool, then it may make sense to share a configuration directory, otherwise it should be separate.

  5. Do ALL configuration repositories need to be packages?

    • No, but it may be useful.

    • We do require for traceability in reporting, which means we need to know which tags/versions you were running, and how your simulation was configured, so what is most important is that your config repo is maintained and versioned correctly.

    • Advantages to python packages: can rely on your environment to take care of directory management

    • Allows functionality to be built into package and shared between users.

    • Advantages to repos with just files:

    • Easier to maintain, must hard code a repo (bad), or set an environment variable (less bad), then execute system commands from within a python script/notebook. Currently doing this in psd_utils to detect if stp_reference data is dirty.

  6. Config files mention filenames, where should those files be located?

    • They should reside in the support_data directory. Note that in many cases the support data will contain files managed by gitlfs.

  7. Do filenames or paths in config files require a unit?

    • UASAL configs utilize Astropy units. They should be formatted as strings as per this example. If no unit is provided, it is assumed to be unitless. Details regarding the automated testing for the units are currently being implemented in the utils_config repository and then will be called from the CI tests in all config_* repos.

  8. When should the configuration version be augmented?

    • Normally, when the code is no longer backwards compatible and the format for the file no longer applies. This occurs when either additional mandatory keywords are required or removed. This cannot be implemented because the tools are not utilizes schemas for configuration and therefore config files cannot be validated against versions of the schemas.

  9. Should I use semantic versioning? Yes, but note that only major revisions require version bumps.
